Application, machine tending, processing, and press brake tending

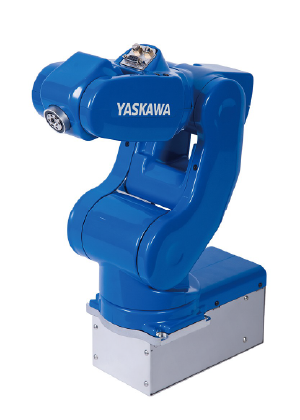

Smallest and Lightest 6-Axis Robot in the Industry

Equipped with the highest acceleration in a small-sized robot, the MotoMini is 20% faster than comparable small robots, reducing cycle time and boosting productivity. Internal cabling and air lines minimize interference with other process equipment, and a variety of mounting options (surface, wall, ceiling, etc.) accommodate high-density factory layouts. Designed for extremely agile, high-speed performance for a wide range of applications, the quiet, compact and precise MotoMini can take your small-part process to the next level.


Technical Details

Payload 0.5 kg
Max Working Range 350 mm
Repeatability 0.02 mm
Weight 7 kg
Power Supply 0.5 KVA
S Axis 315 º/sec
L Axis 315 º/sec
U Axis 420 º/sec
R Axis 600 º/sec
B Axis 600 º/sec
T Axis 600 º/sec


Mounting Options


  Floor                       Wall                         Ceiling



Perfect With


Yaskawa Human-Collaborative Robot

The Yaskawa human-collaborative robot (HC10) is a new generation of robotics that is capable, affordable, versatile, easy to use and built with the industrial strength for which Yaskawa is known. These robots are for customers looking for easy automation, meaning an industrial robot to automate tasks that require it to work in close proximity to humans.


Technical Details

Controlled Axes 6
Payload 10 kg
Max Working Range 1200 mm
Repeatability 0.1 mm
Weight 47 kg
Power Supply 1 KVA
S Axis 130 º/sec
L Axis 130 º/sec
U Axis 180 º/sec
R Axis 180 º/sec
B Axis 250 º/sec
T Axis 250 º/sec


Mounting Options


Floor                         Wall



Perfect With


YRC1000                           YRC1000micro
